- Size: 1100×700×30mm
- Place of Origin: Henan, China (Mainland)
- Brand Name: DOUBLE BIRDS
- Model Number: QT5-15
- Weight: 10000.000 kg

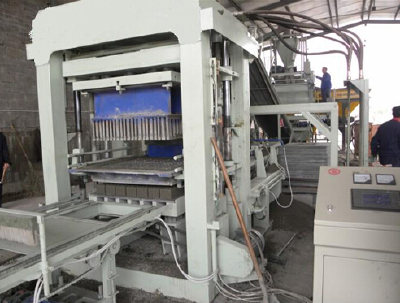

1. QT5-15 the soil brick making machine is controlled by PLC system. By operating its computer interface, the random signal analysis, fault diagnosis and parameter setting-up of all kinds of materials can be achieved easily.
2. The material stock hopper and the material feeding hopper are separated, to each other, for the purpose of quantitative feed of materials, which can effectively control some concrete ahead of liquefied and reduce the feeding time.
3. Trailing feeding system adopt the multi-stirring fork, the mould case can slosh before and after quickly, in order to put the materials full the bottom of the mould case fast.
4. Hydraulic Components are fully used the Seiki components that are produced in Taiwan. This can usefully guarantee the reliability and stability of machinery long-term work, reduce the maintenance failure rate.
5. Wide adaptability, this block forming machine can change different moulds due to the need of customers. And this kind can produce different kinds of standard block, standard brick, planting brick, revetment tiles, pavement slabs, decorative brick and so on.
Main Technical Specifications | ||
Standard | JC/T920-2003 | |
Vibration Frenquency | 4500 r/min | |
Vibration Pressure | 70KN | |
Motors Specification | Vibration Motor(kw) | 5.5x2 |
Hydraulic Motor(kw) | 11/18.5 | |
Concrete Feeder Motor(kw) | 4.0 | |
Belt Conveyor (kw) | 2.2 | |
Stacker Motor(kw) | 1.5 | |
Wet Block Conveyor Motor (kw) | 0.75 | |
Production/mould | Hollow block (390 × 190 × 190mm) 5 Pics/mould | |
Hollow block ( 245 ×115×90 mm) 16 Pics/mould | ||
Solid Brick (245 ×115×53 mm) 32 Pics/mould | ||
Paver brick ( 200 ×100×60 mm ) 18 pieces/mould | ||
Cycle Time | 15seconds | |
Production/day(8hours) | Hollow block(390 ×190×190 mm ) 5800 -6300 Pics | |
Hollow block (245 ×115×90 mm) 18500-20000Pics | ||
Solid brick (240 ×115×53 mm) 45000-57000Pics | ||
Paver brick (200 ×100×60 mm) 21000-23000Pics | ||
Motor Power | 29.7KW | |
Water Consumption | 5-9T | |
Number of workers | 6-10worker | |
Space of Ground | 3600m 2 | |
Gross Weight | 10T | |
Machine Dimension | 3000x1900x2930mm | |
Pallet size | 1100 ×700×30mm | |
Main materials | Cement,crushed stone dust,gravel,sand,coal fly ash,iron/aluminium dust,crushed cinder and some industrial wastes | |
Products of machine | Hollow blocks,Solid bricks,Pavers,Kurbstones,Slope blocks,slabs, interlock bricks and so on. | |
