- Size: 7100×1600×2610mm
- Place of Origin: Henan, China (Mainland)
- Brand Name: DOUBLE BIRDS
- Model Number: QT4-15
- Weight: 5600.000 kg
Screw Conveyer (Optional fitment): loading bins of the instrument for transporting Fly Ash from the silos(optional fitting) or cement hopper (optional fitting) to the Batching Plant.
Batching Plant: It consists of three loading bins and one weighing bin. It also contains blet conveyers to convey materials from loading bins to weighing bin. Batching and weighing is done by PLC control. We can load three different types of material into the loading bin.
Conveyer Belt: When the Batching plant’s weighing bin trips according to the PLC control, the material comes to this conveyer belt. Then conveyer belt carried materials to the Mixture Machine.
Concrete Mixture Machine: All the ingredients are mixed in this mixture machine. Mixing time and speed is controlled by PLC. The inbuilt water pump adds water to the mixer automatically, as per requirement.

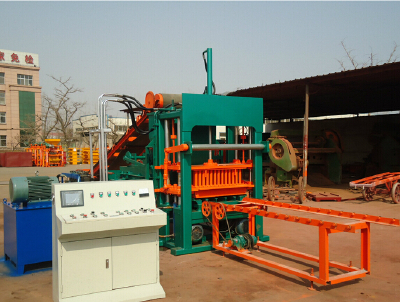

Block mold machine: This is key of the production line. It can press the mixed material. So it can make various hollow block, solid brick, paver brick and kerbstone.
1.Techinical Parameter of solid machine blocks project qt4-15 :
Technical Data of QT4-15 Block ma king Brick Machine
Raw Material | Sand, Cement, Fly Ash, Concrete, Boiler Slag, Mountain Flour, Industrial Waste. |
Usage | To Produce Hollow Block, Solid Brick, Porous Block, Paving Brick, Interlocking Brick and Paver Through Exchange the Mould |
Pallet Size | 1020×570mm |
Hydraulic Pressure | 16Mpa |
Forming Cycle | 15 Seconds |
Vibration Type | Table Vibration |
Power | 27.5kw |
Vibration Frequency | 4600/min |
Workers | 6~10 Persons |
Land Area | 1000m² |
Weight | 5.6T |
Block Machine Size | 7100×1600×2610mm |
2. production Capacity of QT4-15 Block making Brick Machine :
Size(LxWxH) | Pcs/Mould | Pcs/ Hr | Pcs/ 8 Hr |
400X100X200 | 20 | 3000-3600 | 24000-28800 |
400X150X200 | 14 | 2100-2520 | 16800-20160 |
400X200X200 | 10 | 1500-1800 | 12000-14400 |
400X250X200 | 8 | 1200 | 9600 |
Paver:200X100X60 | 35 | 5250 | 42000 |
Paver:200X165X60 | 20 | 3000 | 24000 |
3.Material proportion of QT4-15 Block making Brick Machine :
1. 8-10% cement, 30-40 % sand , 50-60% crushed stone.
2. 8-10% cement, 30% flyash, 60% sand or stone powder
