- Size: 3500×2220×2850mm
- Place of Origin: Henan, China (Mainland)
- Brand Name: DOUBLE BIRDS
- Model Number: QT10-15
- Weight: 8000.000 kg
Characters:
PLC intelligent control. Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn’t need a professional person but only need a simple training to the operator.
Product scope:
It produces various bricks/blocks including color-face bricks(layered material feeding),through body tiles, dock linkage blocks, road curb bricks, sod bricks,hydraulic blocks hollow blocks,perforated bricks, and standard bricks
Technical Parameters:1. Detailed specification: | |||
Dimension of host machine | 3500×2220×2850mm | control style | PLC |
forming style | Hydraulic | Vibration force | 100KN |
vibrator style | table and mould vibrate togather | raw material feeding style | 360 degree revole |
forming hight | 40-250mm | moulding period | 15-20S |
moulding aera | 1025×810mm | size of pallet | 1350×900×30mm |
weight of host machine | 14ton | Mixer style | JS750 |
General water Consumption | 12T/day | Voltage | 220/240/380/440V |
Simple block machine line area needed | |||
Workshop | 200m2 | ||
Office | 100m2 | ||
Total area | About 2000m2 | ||
Worker arrangement | |||
operate | 1 | Material loader | 1 |
Drive forklift | 1 | Feeding pallets | 1 |
Maintain | 1 | Total | 5 |
Production capacity | |||
Size(L x W x H) | Pcs /Mould | Pcs / Hr |
|
400X100X200 | 20 | 3000-3600 |
|
400X150X200 | 14 | 2100-2520 |
|
400X200X200 | 10 | 1500-1800 |
|
400X250X200 | 8 | 1200 |
|

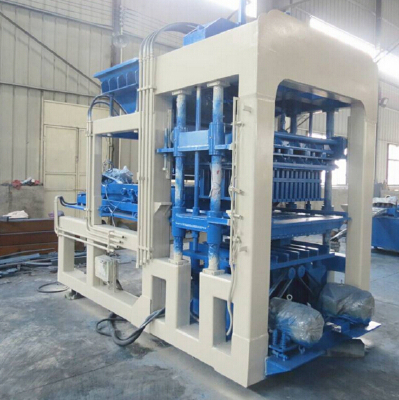

Technical characteristics of QT10-15 cement brick making machine automatic :
1). Automatic block production lines, includees a cluster cars, steam curing cellar of block production line , are of high degree of automation .It can bring the fully-automated production process of batch charging, stir forming , transmission and curing, palletizing and packing into practice.
2). our machine have passed Europe CE and ISO9001 standard.we use Germany SIEMENS motors,Japanese MITSUBISHI PLC control system
3).Use three same size oil cylinder,will work at the same time,to insure the same density and high quality of the blocks.
4).Use 360°revoling method to make the material more uniform.
5).Use the heat treatment technial to deal with the mould,so the useful life of the mould is more longer.
6).Install the cooling pump to cool down the oil ,so to insure the normal work of the Hydraulic System.
7).Install the waste recycling tank,could reduce the waste of materials
