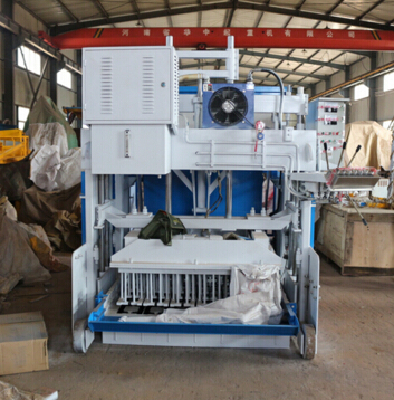

QMY10-15 egg laying block machine

QMY10-15 egg laying block machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 50 Sets per Month
  • Port: Qingdao/Tianjin
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2013-04-15
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  3100*2000*2400mm
  • Place of Origin:  Henan, China (Mainland)
  • Brand Name:  DOUBLE BIRDS
  • Model Number:  QMY10-15
  • Weight: 4800.000 kg

  Introduction of QMY10-15 Building And Construction Bricks Machine Hollow,solids,foundation and chimney blocks-to mention only a few examples.WANTE model .QMY10-15,the idea Concrete block making machine for economical mass Production of the high quality concrete blocks,Available.In semi and fully automatic execution.outstanding Performance in open area or building,safe handing and Well proven design principle guarantee efficient operation of  model QMY10-15,even still in decades.Different moulds are easily interchangeable.The machine produces
concrete elements directly onto the ground,in lines-cycle by cycle,Running wheels of machine are outfitted with Vulkollan coating for protection of the concrete floor.Equipped with hydraulic hunting Wheel for turning of machine at end of production lines.More than six thousand machines of this type are in operation-worldwide QMY10-15 offers for all travellers comprehensive equipment for concrete block handling.Cubers with special clamps are available.Transport of fresh concrete from batching and mixing plant to block machine is preferably made with a forklift equipped with a hopper or with a special concrete loader.Ask WANTE for the options available.

Technical parameters concrete block machine

Overall dimension 3100*2000*2400mm
Hydraulic method Mould vibration
Demold method Hydraulic
Turning method Hydraulic
Hydraulic system pressure 16-20Mpa
Excitation frequency 3200Hz
Total power 17.5KW
Total mass 4800KG
Molding cycle 20S
Molding size (L*W) 1000*860mm
Molding 12 Pcs/mould(400*200*200/390*190*190 mm)
Capacity 1300-1500Pcs/hour
Types of bricks can be made 390*240*190/390*150*190/390*115*190/Customize
Moving method Automatically move and hydraulic steering
Raw material

Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.




productivity OF QMY101-5



Item

Sample

Size

Quantity

Cycle molding

Per day

10hours

Hollow block



400×200×200 mm

1 2 pcs/mould

20~25s

1 4 000pcs



400×1 4 0×200 mm

1 4 pcs/mould

20~25s

1 8 000 pcs



400×120×200mm

1 8 pcs/mould

20~25s

2 4 000pcs


  • Size:  3100*2000*2400mm
  • Place of Origin:  Henan, China (Mainland)
  • Brand Name:  DOUBLE BIRDS
  • Model Number:  QMY10-15
  • Weight: 4800.000 kg
