- Size: 1300*1500*1000mm
- Place of Origin: Henan, China (Mainland)
- Brand Name: DOUBLE BIRDS
- Model Number: QMJ4-30
- Weight: 880.000 kg

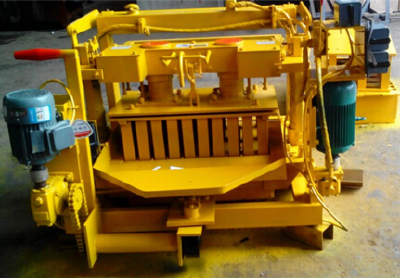

QMJ4-30 mobile hydraulic brick machine, our factory combines the advantages of hydraulic equipment and mechanical devices to "low-cost, high-performance" principle, the latest development of a mobile device. The equipment hydraulic systems and mechanical design complement each other, simple operation, the block can be achieved with no pallet block production, greatly reducing the purchasing brick machine pallet investment.
The device uses a vibration mode as vibration-based forms to achieve super-low power vibration effect. Supplemented by a hydraulic molding, enables filling materials effective and dense. So that the quality of the produced blocks can be comparable with the large hydraulic production machinery. Replacement the mold can produce a variety of block products.
Brief introduction
Low investment, low risk and high efficiency are the ideal goal of each investor. Only the high-tech “goose” could produce the “golden egg”. After marker research to make a better choice, Luhu expects your identity to join hands with you to seek common development and grand future.
Main Technical Specifications
Overall Dimension | 1300*1500*1000mm |
Molding cycle | 30s |
Production capacity | 2000-2600pcs/shift |
Vibration frequency | 4500r/min |
Overall weight | 880kg |
Motors Power | 5.95KW |
Exciting power | 28.6KN |
Molding form | Vibration and Pressure |
Main vibration form | Mould Vibration |
Raw Materials | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, expanded perlite, and other industrial wastes |
Applied Products | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Productivity of QMJ4-30 block making machine
| Size mm | Cycle | QTY | Per hour |
Procous brick | 400*240*190 | 25s | 3 | 430pcs |
Hollow block | 400*200*200 | 25s | 4 | 570pcs |
