- Size: 1000*1000*1800mm
- Place of Origin: Henan, China (Mainland)
- Brand Name: DOUBLE BIRDS
- Model Number: DB1-10
- Weight: 1000.000 kg

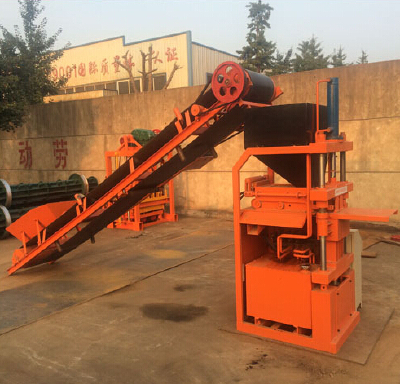

1)DB-10 compressed earth brick machine is a small type block machine, which can be easily operated by only one person.
And it has been widely used in African countries.
2)This kind of block machine can make many clay brick in one minute.
3)By adjusting the screws, the height of the brick can be changed.
4)According to customer’s requirements, the mould can be changed.
Specification of DB1-10 full automatic brick machine :
Cycle | 10s |
Power | 5.5kw or 12Hp diesel engine |
Pressure | 16MPA |
Dimension | 1000*1000*1800mm |
Total Mass | 1000 kg |
Capacity of DB1-10 full automatic brick machine:
Block size | Pcs/mould | Pcs/hour | Pcs/day |
250x125x70mm | 1 | 250-300 | 3500-4800 |
230x220x115mm | 1 | 250-300 | 3500-480 |
